euro wall eps fr
The Euro Wall EPS FR es un panel metálico tipo sándwich diseñado para cerramientos verticales. It is made up of two pre-poled galvanized steel sheets and an expanded self-extinguishing polystyrene core (EPS FR), which provides excellent thermal insulation with a high level of fire safety.
Thanks to its male-hembra-type union system, The panel provides a hermetic seal, A quick installation and a clean aesthetic finish. It is an ideal solution for perimeter walls, Interior divisions and facades in industrial projects, commercial and residential.
White
Arena
details
🔧 Main features of the euro wall EPS FR:
- Composition:
- Two prepared galvanized steel sheets.
- Insulating nucleus of EPS FR (Expanded self -extinguishing polystyrene).
- Assembly system:
- Male-hembra type, which provides a hermetic seal and a clean finish.
- Thicknesses available:
- Varied nucleus thicknesses (Typically between 2 ”and 4”), According to thermal requirements.
- Standard useful width:
- 1,000 mm (can vary according to the manufacturer).
- Customizable lengths:
- CUSTAGE CUSTOMS ACCORDING TO THE PROJECT, with typical long since 2 until 12 meters.
- Thermal isolation:
- Good thermal resistance (Value R), adequate for warm or temperate climates.
- Flame retardant (FR):
- Core with additives that delay the propagation of fire (autoextinguible).
- Lightweight:
- Facilitates its transport and installation without heavy equipment.
- Durability:
- High weatherability, humidity and corrosion thanks to its metallic coatings.
typical applications: Exterior and interior walls, industrial divisions, booths, Modular offices, light cooling cameras, among others.
Euro Wall EPS FR is mainly used in:
- Muros
- Coattails of Industrial Buildings
- Malls
- Refrigerating and freezing chambers
- Shacks

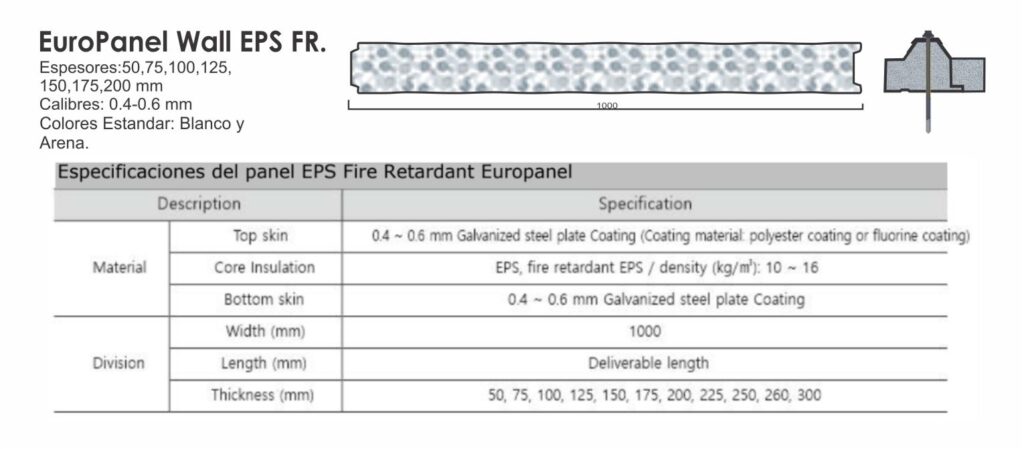

Technical details
VIDEOS
Prueba Contra Incendios
EuroPanel Roof ensamble
gallery
