Euro wall pir

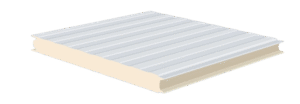

Euro Wall PIR es un panel metálico aislado diseñado específicamente para cerramientos verticales en construcciones industriales, commercial and residential. Its nucleus of rigid foam of pir (policianurato) offers excellent thermal performance and high fire resistance, overcoming the traditional polyurethane (PUR).
This panel is made up of two pre-poled galvanized steel sheets that encapsulate the insulating nucleus, which gives it great structural rigidity, Durability and weather resistance. Thanks to its male-hexing assembly system, he Euro Panel Wall PIR asegura una instalación rápida, hermetic and aesthetically clean.
White
Arena
details
Upper thermal insulation: Very low thermal conductivity, Ideal for extreme climates.
Excellent fire behavior: Improved classification against Pur, With less flame spread.
Easy installation: Quick union system that reduces assembly times and costs.
Aesthetic versatility: Available in different colors and finishes.
Applications: Exterior walls, interior, architectural facades and industrial divisions.
Euro Wall PIR se utiliza principalmente en:
- Muros
- You facades
- Coattails of Industrial Buildings
- Malls
- Refrigerating and freezing chambers
- Shacks

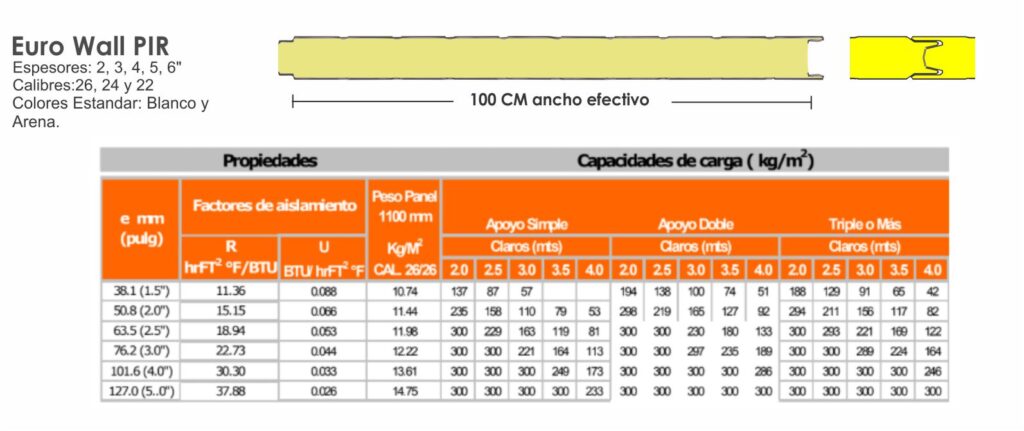

(1) Maximum permissible deflection = l/180
(2) Modulus of elasticity of the steel 2.1 X 106 kg/cm2
(3) Maximum transfer effort 2,604 kg/cm2
(4) Insulation factors do not consider air films.
(5) Calculation of load capacity according to “Design of Foam-Filled Structures by John A. Hartsock”.
(6) Consult with technical advice fixing patterns.
(7) Projects must be calculated by a responsible engineer it to meet
codes, standards and procedures accepted by the construction industry.
Technical details
VIDEOS
Prueba Contra Incendios
EuroPanel Wall ensamble
