• Thermal insulation and soundproofing.
• High structural strength.
• Quick and easy installation.
• Energy savings
• Low maintenance
• Aesthetics and versatility
• sustainability
• clean works (no debris cause).
• Low cost and savings in
• foundation and structure.
• Technical advice in
• project and work.
• Written guarantee.
• It has international approvals.
• Material 100% finished.
• Low maintenance.
• Detachable and buildable.

• It has a complete set of metallic and nonmetallic accessories ensuring excellent fixation
• Overlap minimum recommended 150 mm (6”)
• Made with the outer face sheet Ternium Pintro and the inner face blank vinyl
• Minimum slope 5%, maximum length of slope 60.00 mts.
*Earrings covered with smaller and / or greater lengths are subject to
Technical Consultation individual review

The uses of Econotecho are:

• Coattails of industrial buildings.
• Malls.
• Freezing chambers.
• Chillers.
• Shacks.
• General construction.

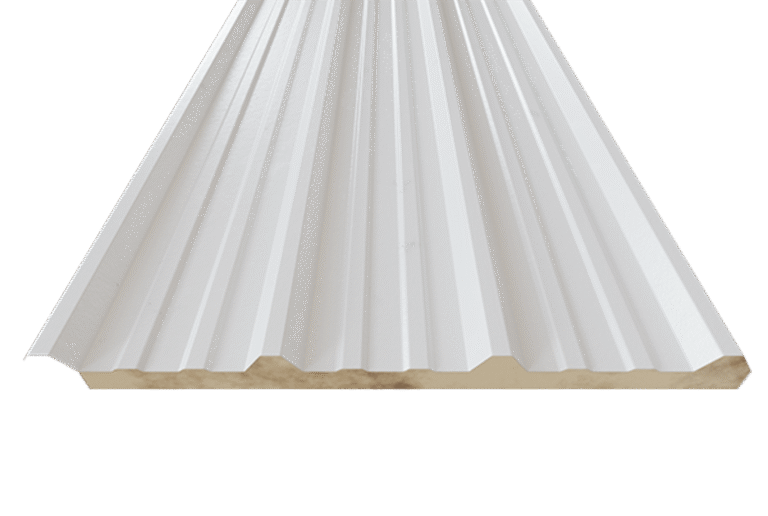

Perfil Geometric Econotecho

Hiding power 1.00 mts
thicknesses: 1″,1.5″ y 2″
Pintro finish in Colora Arena and White Standard. Smooth and embossed.
calibres: 26/Vinyl
long: 2.5m minimum and 12.20m maximum.

Roof Specifications

1. The presented load capacities correspond only to the outer sheet, considering that the foam and the inner lining do not make any structural contribution.
2. Maximum allowable deflection L / 120
3. Modulus of elasticity of the steel 2.1 x 106 kg./cm2.
4. maximum work effort 1,560 kg./cm2.
5. Design criteria and methods according to the “Member Handbook Structural Steel Cold Rolled” published by the American Iron and Steel Institute, 1986.
6. This panel is manufactured using sheet according to ASTM A-653 Grade 37 (Fy = 37 Ksi).
